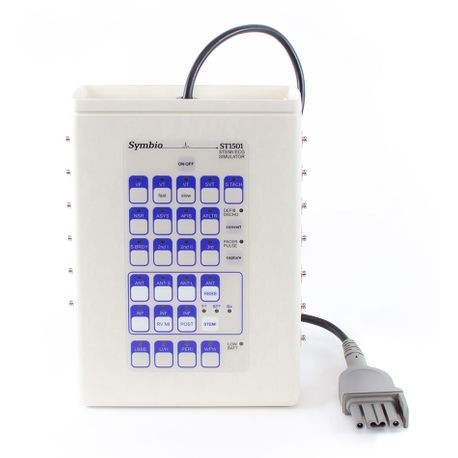

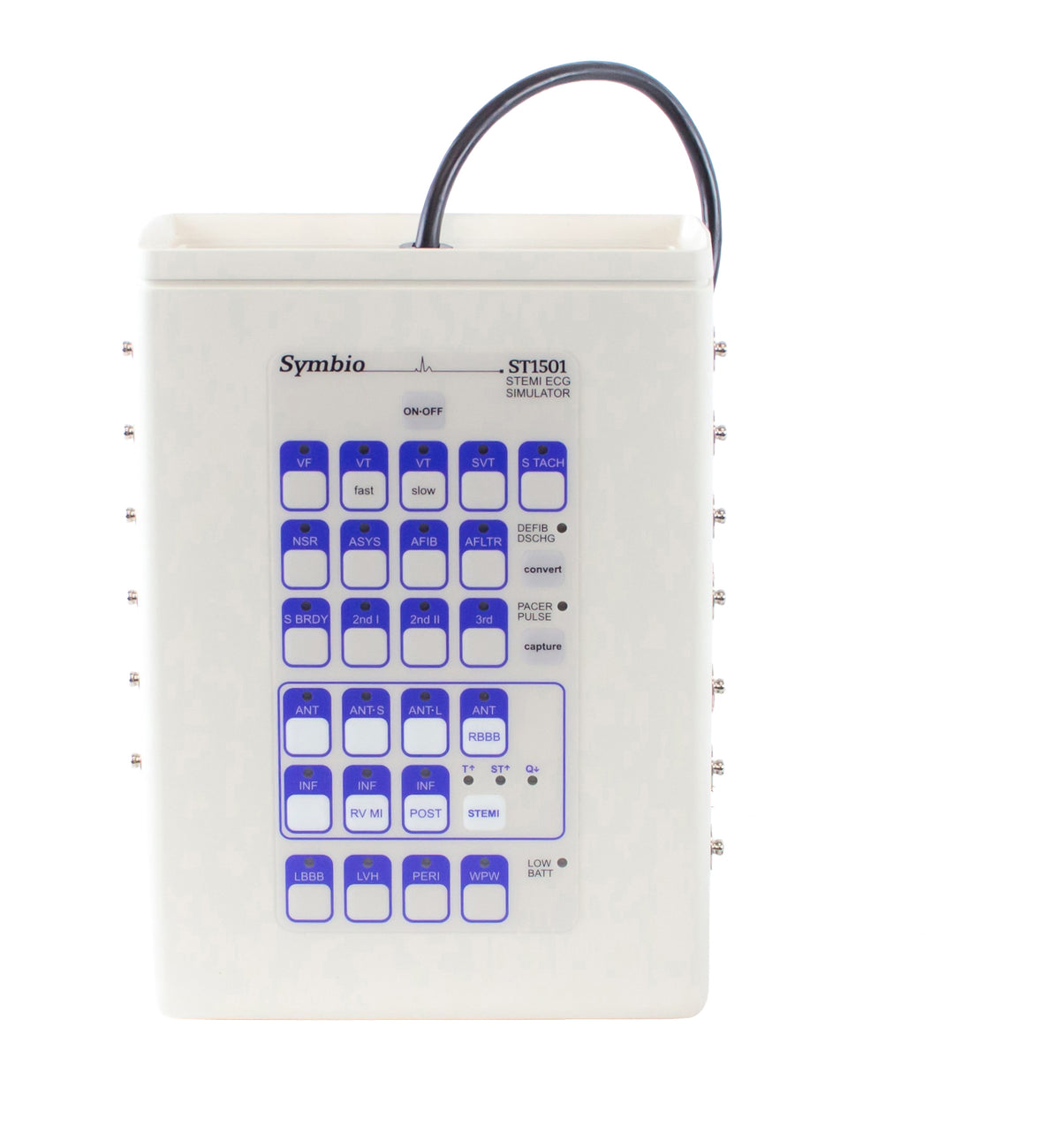

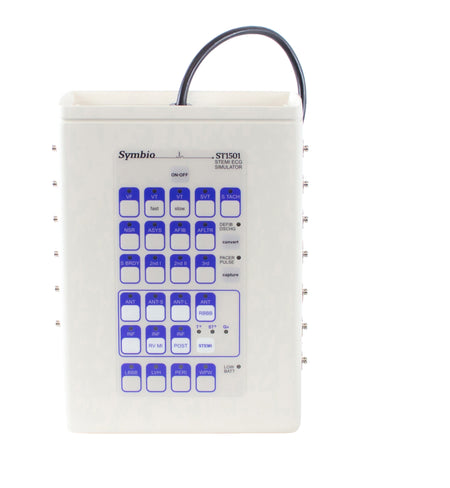

15-Lead Arrhythmia Simulator
Acquire 15-lead STEMI recordings with your standard 12-lead ECG monitor. Three new pre-cordial ECG snaps allow for direct viewing of the right ventricle - through V4R - and of the posterior ventricle - through V8 and V9. STEMI rhythms include: Inferior, Inferior with right ventricular STEMI, Inferior with posterior STEMI, Anterior, Antero-septal, Antero-lateral and Anterior with RBBB.
Observe progression of T wave, ST segment and Q wave changes during STEMIs. Each STEMI can be displayed in one of three phases: hyperacute (broad, peaked T waves), acute (ST elevation) and post-acute (pathological Q waves).
Differentiate STEMIs from imposters. Common rhythms with characteristics that mimic STEMI but are not STEMIs include: LBBB, LVH, pericarditis and W-P-W.
Discharge your defibrillator directly into the simulator. Use “convert” feature to convert automatically to another rhythm after defibrillation. Useful fibrillations and tachycardias include: VFib, VTach fast, VTach slow, SVT, Sinus Tach, AFib and AFlutter.
Simulate paced beats with your external pacer. Select one of five pacing capture levels: 70, 80, 90 or 100 mA, or “ignore”. When your pacer’s current and rate are properly adjusted, paced beats are displayed. Useful bradycardias include: Sinus Bradycardia, 2nd degree type I AV block, 2nd degree type II AV block and 3rd degree AV block.
Uses four AA alkaline batteries.
